Description

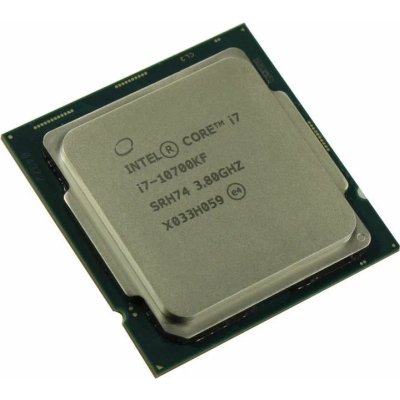

The Intel Core i7-10700KF processor is a powerful desktop processor with 8 cores and 16 threads, released in April 2020. This processor is part of Intel's Core i7 lineup, employing the Comet Lake architecture with socket 1200. Thanks to Intel Hyper-Threading, the effective core count is doubled, providing 16 threads to handle intensive workloads. With 16MB of L3 cache, the Core i7-10700KF.
This processor is manufactured using a 14nm production process, although the transistor count hasn't been revealed. The ability to freely adjust the unlocked multiplier on the Core i7 10700KF simplifies overclocking, allowing you to easily set the desired overclocking frequency.
The Intel Core i7 10700KF excels at its solid performance and ability to handle demanding tasks. With a base frequency of 3.8 GHz and the ability to boost up to 5.1 GHz in turbo mode, this processor delivers agile performance and exceptional responsiveness across a wide range of applications.
The Intel i7 10700KF supports DDR4 memory with a dual-channel interface, with a maximum memory size of 128 GB. While the officially supported memory speed is 2933 MT/s, with overclocking and the appropriate memory modules, even higher speeds are possible.
This processor uses a PCI-Express Gen 3 connection to communicate with other components in the machine. It's important to note that this processor does not have integrated graphics, so a separate graphics card is required.
Its temperature remains approximately 30ºC at idle and 78ºC on average in stress tests, 4ºC cooler than the i9-10900K with the same heatsink and noticeably cooler compared to the i9-9900K. With an average power consumption of 315W in the Aida64 stress test, without stressing the GPU, the Core i7-10700KF is 20W more efficient than the i9-10900K.
The Core i7 10700KF is compatible with motherboards that support the Intel LGA 1200 socket, giving users the flexibility to build high-performance systems for a wide variety of applications, from gaming to demanding productivity tasks. With a TDP of 125W, efficient cooling is recommended for this processor. Its dual-channel interface support and overclocking capabilities make it suitable for users seeking exceptional performance and tuning flexibility.
Users have experienced improved performance when using the Intel Core i7 10700KF processor, especially in power-hungry applications and games. User testimonials have highlighted the noticeable improvement in overall performance, especially when using CPU-intensive programs, as well as in rendering and editing tasks.
It's a CPU that offers solid performance, flexible memory specifications, broad compatibility, and a satisfying user experience across a variety of applications. With its ability to handle demanding tasks, versatility, and overclocking capabilities, this processor is a standout choice for those seeking exceptional performance from their desktop systems.
Technical Sheet
Specification | Detail |
---|---|
Processor manufacturer | Intel |
Processor base frequency | 3.80 GHz |
Processor family | Intel Core i7-10xxx |
Number of processor cores | 8 |
Processor socket | FCLGA1200 |
Component for | PC/Thin Client/Gaming/Workstation |
Processor lithography | 14 nm |
Processor model | i7-10700KF |
Number of threads | 16 |
System bus data transfer rate | 8 GT/s |
Operating processor mode | 64-bit |
Processor cache | 16 MB (Intel Smart Cache) |
Type of cache in processor | L3 cache |
Thermal Design Power (TDP) | 125 W (configurable TDP-down: 95 W) |
Intel Turbo Boost Frequency 2.0 | Up to 5.00 GHz |
Intel Turbo Boost Max Frequency 3.0 | Up to 5.10 GHz |
Compatible memory | DDR4-2933, max 128GB, 2 channels |
Maximum memory bandwidth | 45.8 GB/s |
ECC compatible memory | No |
PCI Express Review | 3.0 |
PCI Express Configurations | Up to 1x16, 2x8, 1x8+2x4 |
Maximum number of PCI Express lanes | 16 |
Intel Hyper-Threading Technology | Yeah |
Intel Turbo Boost Max Technology 3.0 | Yeah |
Intel Turbo Boost Technology 2.0 | Yeah |
Intel Virtualization (VT-x, VT-d, EPT) | Yeah |
Intel 64 | Yeah |
Instruction set | 64-bit |
Instruction set extensions | Intel SSE4.1, SSE4.2, AVX2 |
Idle states and improved SpeedStep | Yeah |
Thermal monitoring technologies | Yeah |
Intel Optane Memory supported | Yeah |
Maximum temperature (Tjunction) | 100 °C |
Package size | 37.5 mm x 37.5 mm |
