Description
Description

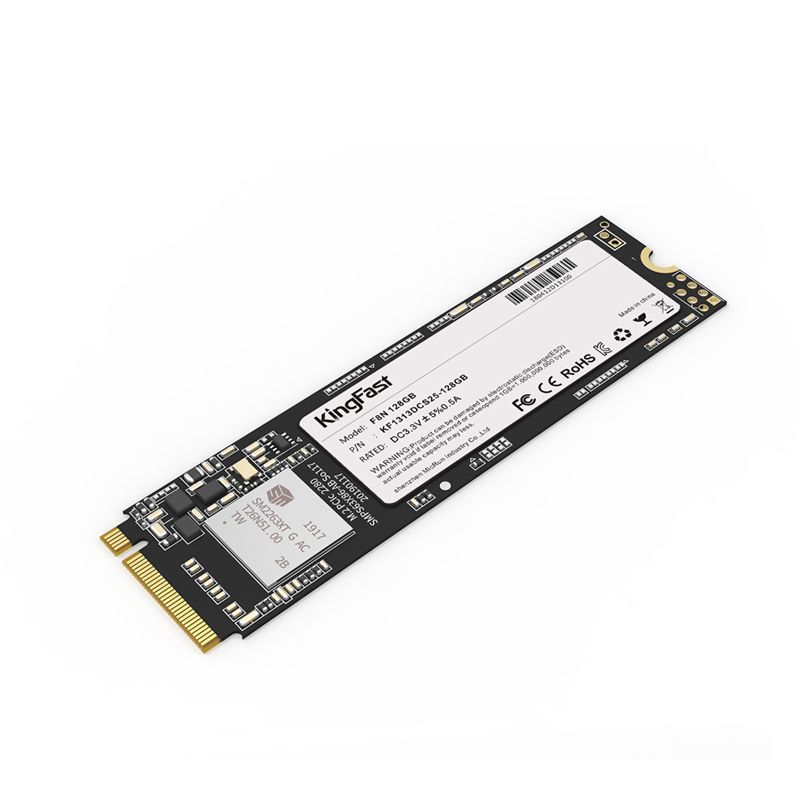

The KingFast F8N NVMe is a solid-state drive (SSD) designed to significantly improve the performance of desktop, laptop, and console systems like the PlayStation 5. Available in 512GB, 1TB, and 2TB capacities, this SSD uses TLC NAND Flash technology and delivers read speeds of up to 2,100MB/s and write speeds of up to 1,664MB/s, resulting in faster load times and a smoother user experience.
This SSD features an M.2 2280 interface that uses the NVMe/PCIe 3.0 x4 protocol, providing superior bandwidth compared to traditional SATA SSDs. Additionally, its compact design with no moving parts makes it resistant to shock and vibration, increasing its durability and reliability in demanding environments.
The KingFast F8N NVMe operates within a temperature range of 0°C to 70°C and is power-efficient, with an operating voltage of 3.3V±5%. It is backed by a 3-year warranty, offering users a reliable, high-performance storage solution for a variety of applications, from gaming to professional tasks requiring high-speed data access.
Technical sheet
General |
Interface |
M.2 M Key |
Dimension |
Option |
|
22*80*3.2 mm |
||
Weight |
<40 g |
|
Capacity |
128GB~1TB |
|
SDRAM |
none |
|
Flash type |
Synchronous TLC NAND Flash |
|
Read/Write Performance |
Sequential Read |
Up to 1700MB/s |
Sequential Write |
Up to 600MB/s |
|
4KB Sequential Read IOPS |
|
|
4KB Sequential Write IOPS |
|
|
4KB Random Read IOPS |
40K |
|
4KB Random Write IOPS |
46K |
|
Response Time |
0.1ms |
|
Power Consumption |
Power Supply |
5V + 5% |
Standby |
0.3W |
|
4KB Random Write |
5W |
|
Reliability |
Write endurance: 8 years @ 100G write/day(128G) |
|
Read endurance: unlimited |
||
MTBF: >2,000,000 hours |
||
Data retention: >20years @ 25°C |
||
Data destruction does not support |
||
Sudden power-off recovery support |
||
SMART,NCQ,Trim and dynamic power management support |
||
Static and dynamic wear-leveling |
||
Bad block management algorithm |
||
ECC: LDPC ECC |
||
Environment |
Storage temperature: -40~85°C |
|
Operation temperature: Optional |
||
Humidity: 5%~95% |
||
Vibration: 20G Peak, 10 ~ 2000Hz, (15mins/ Axis) x3 Axis |
||
Shock: 1500G (@0.5ms half sine wave) |
||
Warranty |
3 years |
